Zombie Shooter 3D
(Unity)

Roles:

Level Designer,

Tech Designer

Year

2023-24

Team:

Solo Project (DigiPen Design Capstone)

Links:

~

Description:

  Zombie Shooter 3D is a solo project designed as a first-person shooter game in the setting of a zombie-infested facility. The player has to rely on their puzzle-solving and sharp-shooting skills to make their way out. Throughout their adventure, the player will have to solve numerous challenges, find 3 powerful weapons, and fight 4 unique enemy types including a zombie boss.

Trailer Mock-up


Contents

  • Original Idea

  • Technical Design

  1. Core Mechanics and Interactions

  2. Enemies

  3. Lighting

  • Game Design

  1. Core Mechanics and Interactions

  2. Level Design

  3. Combat

Original Idea

  This prototype was created as a part of the 6-month DigiPen Personal Capstone Project course. For this senior course, I had to demonstrate my skills in 2 design disciplines that I studied during my program, showcasing my progress, abilities, and experience earned at DigiPen. The disciplines of my choice were Technical and Level Design.
  The game’s core gameplay loop was highly inspired by the Resident Evil series, and the visual style took references from Silent Hill 2. The idea was to make a simple first-person survival shooter from scratch, that will have enough gameplay mechanics to build creative levels and designs yet keep it simple enough to be achievable in 6 months of solo work.
  Due to the nature of the class, the development was separated into 2 main stages, pre-production, and production. During the pre-production stage, I mostly worked on the technical implementation of gameplay mechanics and tools that would later help me to build the main content. During the production stage, I filled the prototype with content, using the tools created during the previous stage, making an exciting experience and polishing details.

Technical Design

   The main target of pre-production was to build a technical foundationfor the game, as well as to prototype a vertical gameplay slice demo to see which parts of my design work well and which ones are lacking. Therefore, this stage was mostly dedicated to Technical Design.

Core Mechanics and Interactions

   I began prototyping the core mechanics of the game, starting with the player controller. The player controller had to have the following features:

  • 4 states (Walking, Running, Crouching, and Aiming)

  • Manage player inventory (Ammo and Reload Logic, Health, Weapons Collected)

  • Manage player progress serialization (Save/Load system for player inventory and level progress)

  • Manage shooting (Weapon switch, Weapon Visualization, Bullet Spread)

   After prototyping these features, I started extensive playtesting in order to find potential issues and improve sharp angles.

   The jumping mechanic turned out to be unreasonable in the current context and was cut. The ammo reload logic had to be more complex than I expected and required several variables to keep track of the current magazine load, total ammo count, maximum magazine capacity, and a reload algorithm that will resupply the current magazine depending on how full it is at the moment. The player controller required me to build a finite state machine to handle all of the possible player states and transitions between them (Ex. crouching to running, running to aiming, etc). The player inventory serialization and saving implementation was simple but required many more variables than I expected, including the information about the current weapon held and the current magazine load for each weapon.

   The shooting had to go through several waves of iteration due to the fps parallax effect. The challenge was to make the bullets hit the exact spot where the UI crosshair aimed at, having physical bullets spawn at the gun’s tip in the bottom right corner of the screen. Making the bullets physical rather than having them as a raycast gave several benefits to the shooting experience; real-time bullet path visuals, bullet physics, and complex interactions, bullet ricochet. In order to implement this feature, I had to learn how the parallax issue was addressed in other games and took my solution from Quake 2 and Warframe shooting logics, where the gun’s tip is being pointed toward the crosshair target dynamically adjusting the bullet path to be towards it.

   One other very important system that I implemented was the interaction system. It consists of 2 components, the trigger component and the listener component. When the player interacts with the trigger component, it sends a message to a predetermined listener on the scene, commanding it to do a function of choice from its list of functions. The listener function includes: spawning/removing objects, spawning UI pieces, playing animations or sounds etc. This system allowed me to build unique level events and elements such as doors and buttons without relying on hard-coding my in-game events.

Enemies

   The enemies were a big challenge to make. Apart from being standard NavMesh bots, they also had to have a smart player detection system, allowing the player to stealth through or hide from them, as well as a decapitation system to make the sharpshooting more fun and rewarding.

First of all, I developed a health/damage system that handles receiving and dealing damage between the enemies and the player. When a bullet touches a hitbox, it detects what kind of object it is, plays appropriate particle feedback and if it’s an enemy, sends the damage information to its health component.

   To implement decapitation into the game, I had to create a special model for the enemies, where each body part was a separate mesh that could be turned on and off. Then I assigned separate colliders and damageable components for each body part to correctly register the damage. Once a body part is damaged, it multiplies the damage received (x1 if normal body part, x4 if head) and sends it to the core enemy health script that handles the total enemy health. Then the body part subtracts this damage from its personal health, and when it reaches 0, it removes itself from the model.

   For the navmesh agent, I implemented a 6-state FSM that included states like idle, chasing, attacking, returning back to the original position, and dying. The component can also hold a list of game object positions. If the list has 2 or more entries, the enemy will be patrolling between these 2 positions during the game.

   Another big system I implemented was the player detection system. It uses a combination of a raycast and a trigger collider to see if the player is visible to the enemy. When the enemy sees the player, it starts chasing them. If the enemy loses the player from its sight, then it’ll go to the last place where it saw the player and investigate it for a couple of seconds. Once that time passes, the enemy returns back to its original position or continues the original patrolling path.

   The majority of the enemy roster (Normal Zombie, Explosive Zombie, and Armored Zombie) was made using the exact components described above, with their values adjusted to give them new functionality. For example, the Armored Zombie has some of its body parts lacking an individual health component, making the bullets deflect from those body parts (As handled by the bullet collision script). The Explosive Zombie, on the other hand, has the damage multiplier on his belly to be X8, which instantly kills him after being shot in it, and his dropped loot list has the explosion prefab instead of ammo, which makes him explode on death. As you can see, this system is extremely modular and allows you to implement many different enemy types with different meshes and animations without having to do any scripting.

   However, there is also a unique Boss Enemy that was implemented later in the development. At its core, it inherits many of its components and interactions from the common enemies, which makes it work with all of the enemy mechanics implemented prior (Like the damage system, serialization, etc.). Those components, however, were modified for the sake of the boss battle.

The boss has a 7-state FSM, which includes idle, walking, deflecting bullets, close combat attack, projectile attack, stagger, and death. To learn more about the boss mechanics see the design section.

<---  Swipe to See More  --->

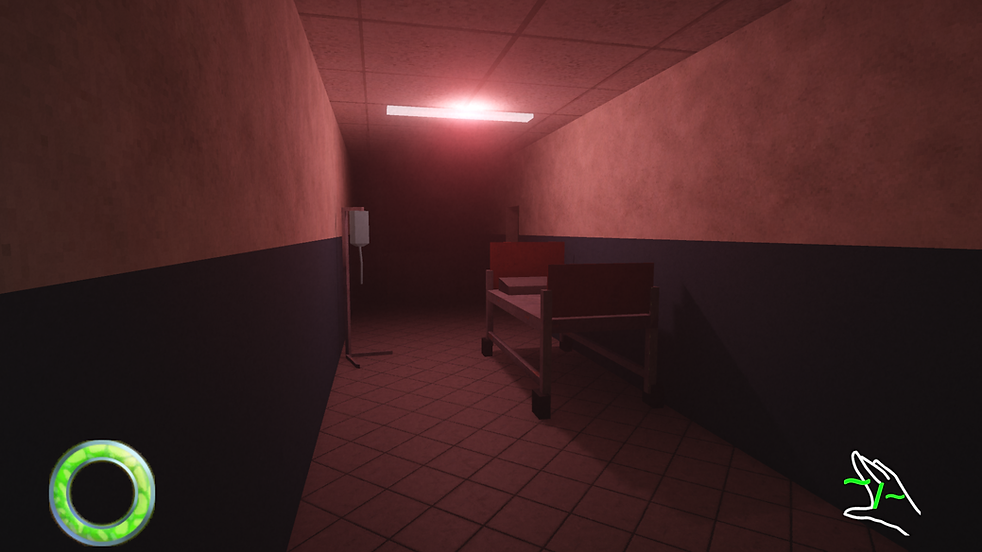

Lighting
